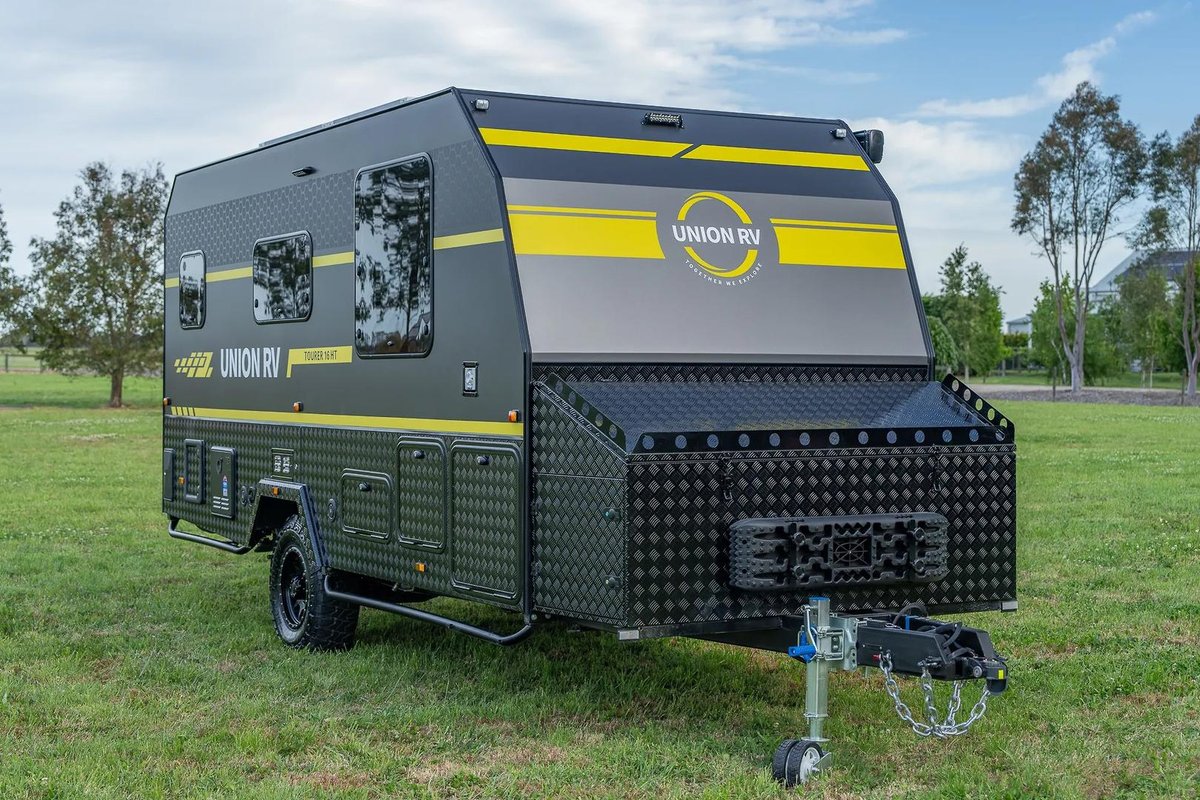

2026 Union RV Tourer 16Ht

The Tourer 16HT is a 16-foot hybrid hard-top caravan built for off-road exploration with premium comfort. Inside, enjoy a full ensuite with a separate shower, plumbed toilet, and a convenient washing machine for extended trips.

Extras like an instant hot water system, enclosed annexe, and 200L water capacity enhance comfort and convenience.

With 600W solar power, dual 135AH lithium batteries, a 2000W inverter, and multiple charging points, the Tourer 16HT supports extended off-grid stays.

Tare: Approx 2360kg
ATM: 3000kg
Tow Ball: 228kg
Dimensions Closed: (L) 7000mm x (W) 2200mm (H) x 2980mm With Aircon
Construction
Hot dipped galvanised 150mm x 50mm x 4mm drawbar
Hot dipped galvanised 100mm x 50mm x 4mm chassis
Composite Aluminium Body Panels
CRUISEMASTER D035 V3Plus Trailer Coupling
ARK XO750 Jockey Wheel
Heavy Duty Independent Suspension
12" Electric Brakes with Breakaway System
4 x 16inch Alloy Wheels – 6 stud
265/75R16 Mud Terrain Tyres
Hard Roof (ELECTRIC POP UP ROOF AVAILABLE)
COMFORT

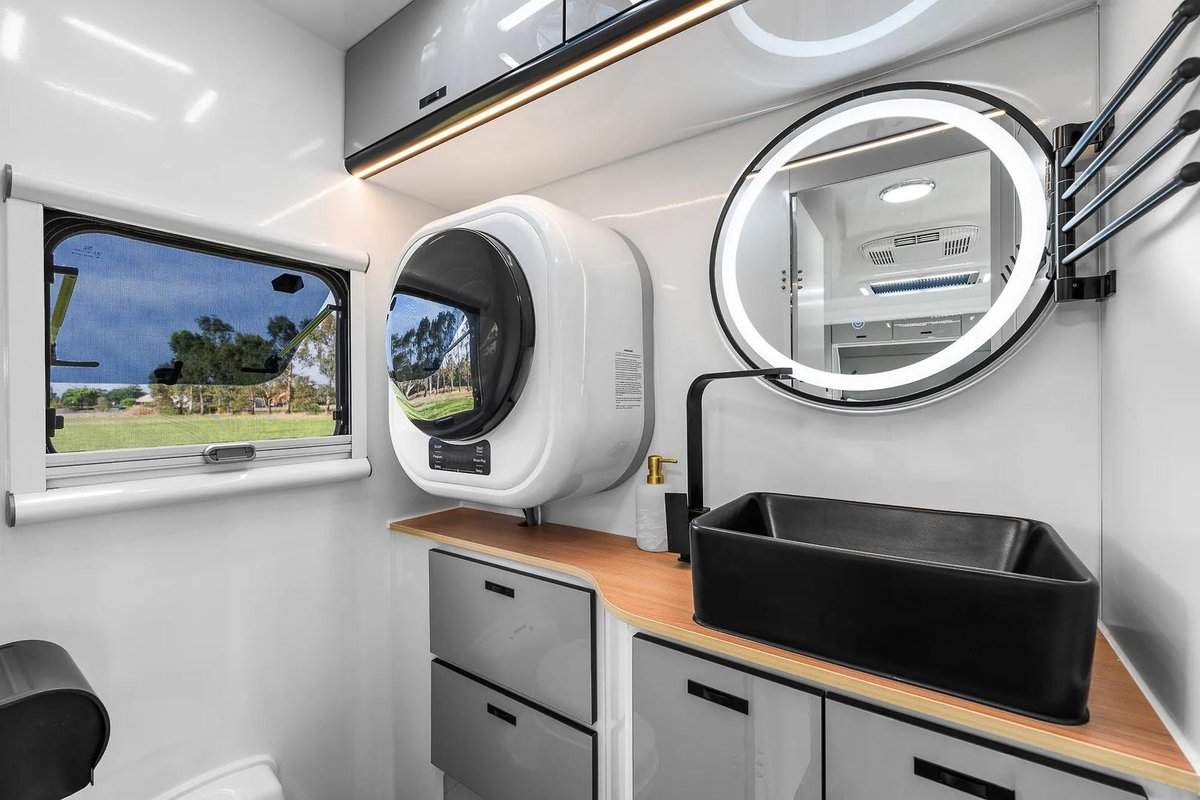

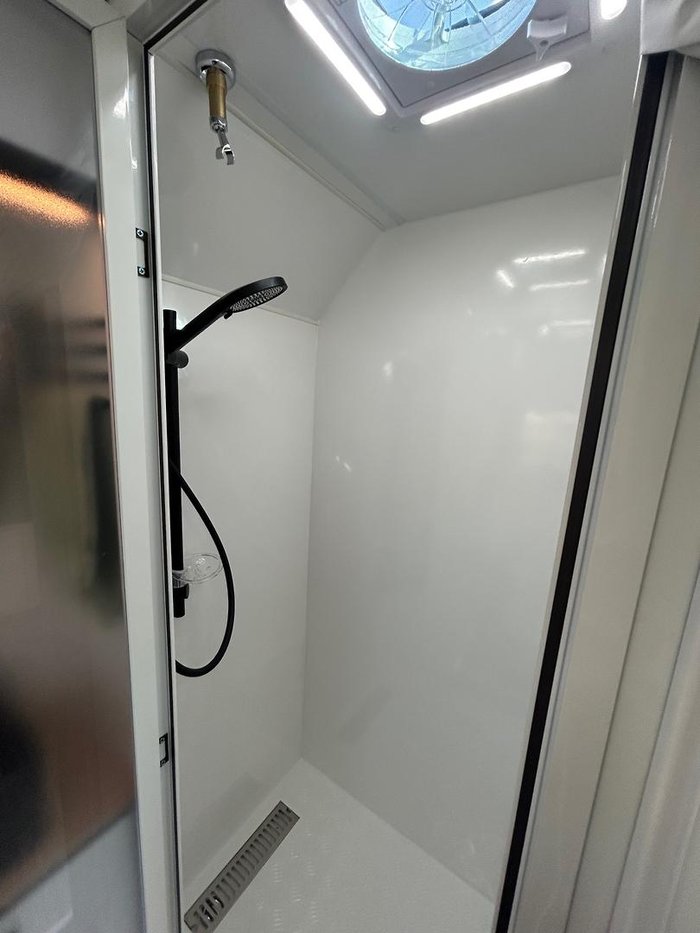

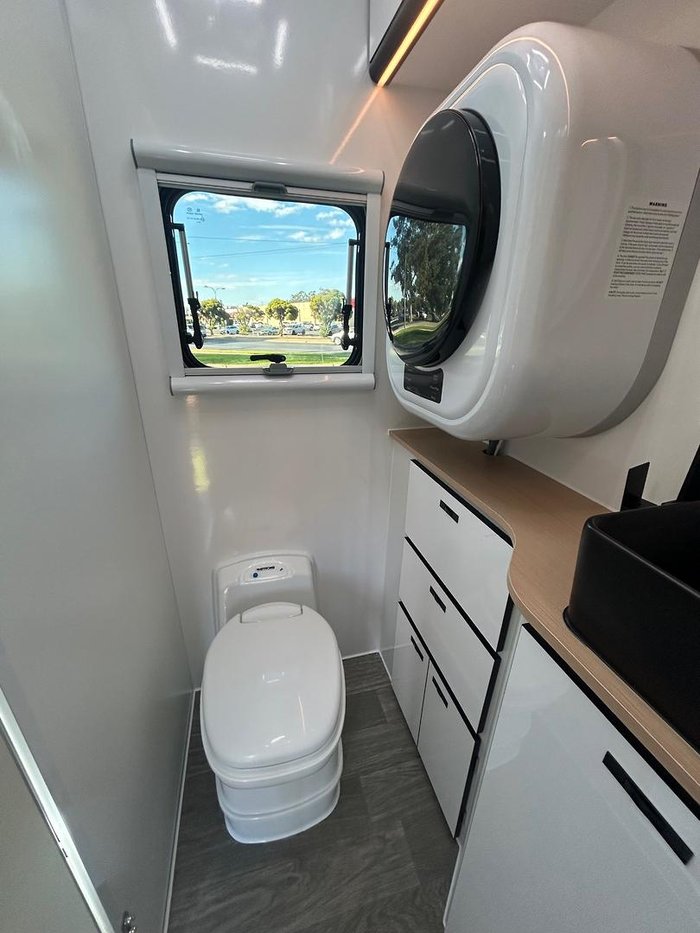

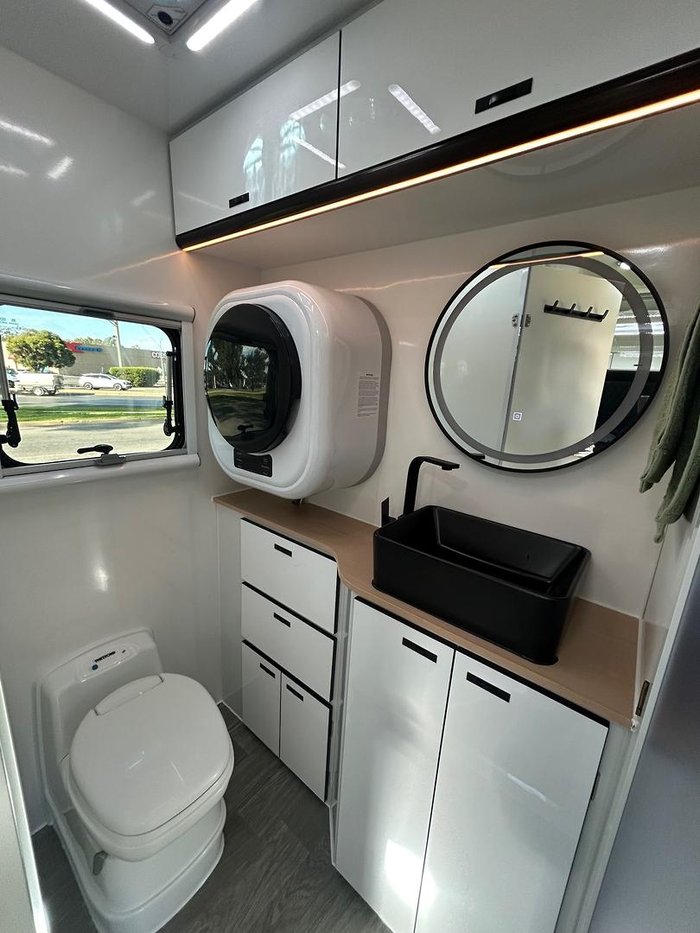

Internal Combo Ensuite – Shower and Plumbed Thetford Toilet
Washing Machine

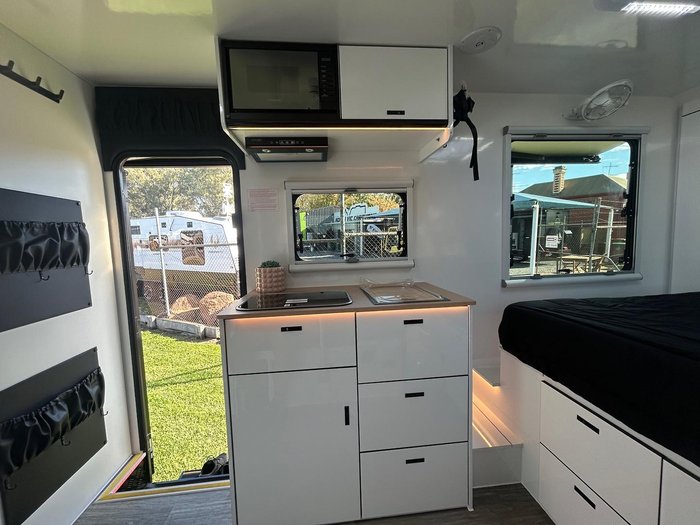

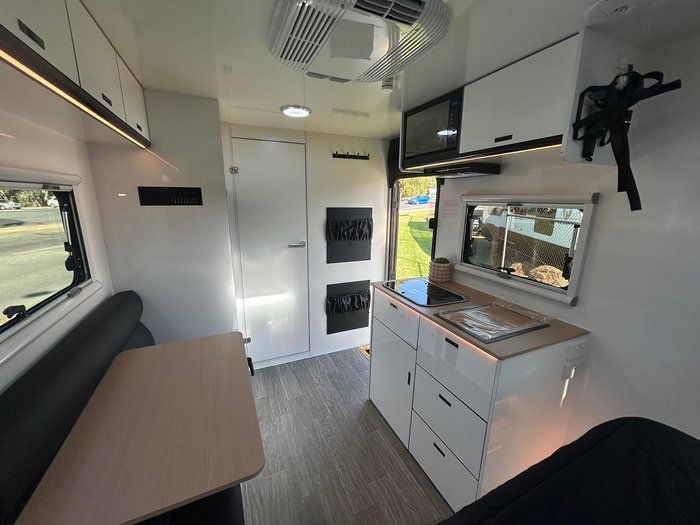

Internal Dometic 2 burner cooktop and sink

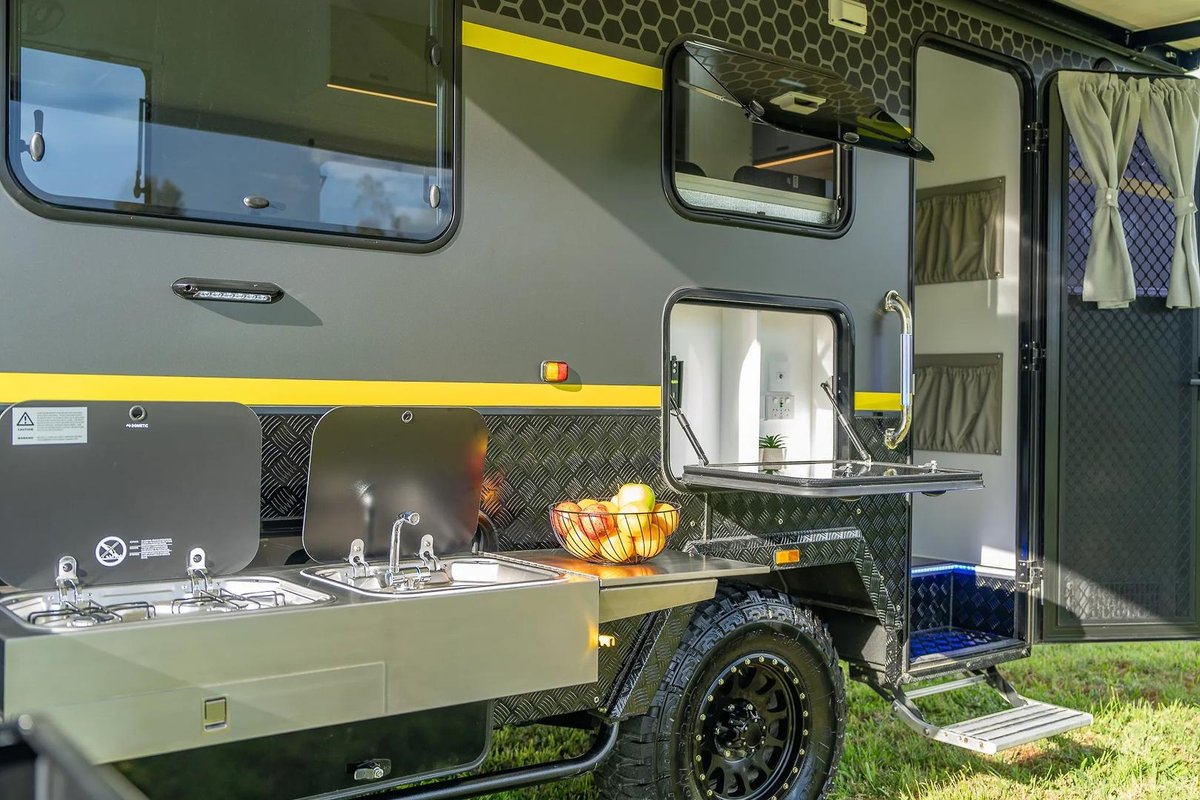

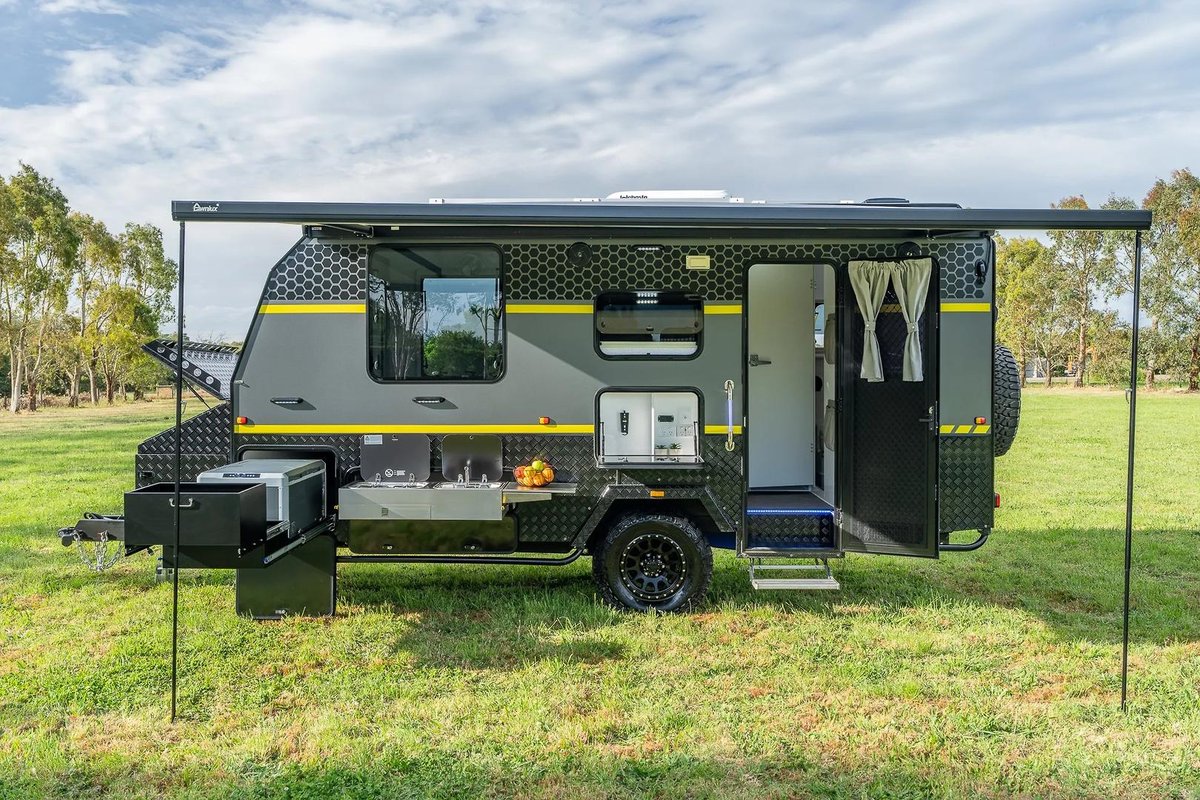

Stainless Steel slide out External kitchen Dometic 2 burner cooktop and sink

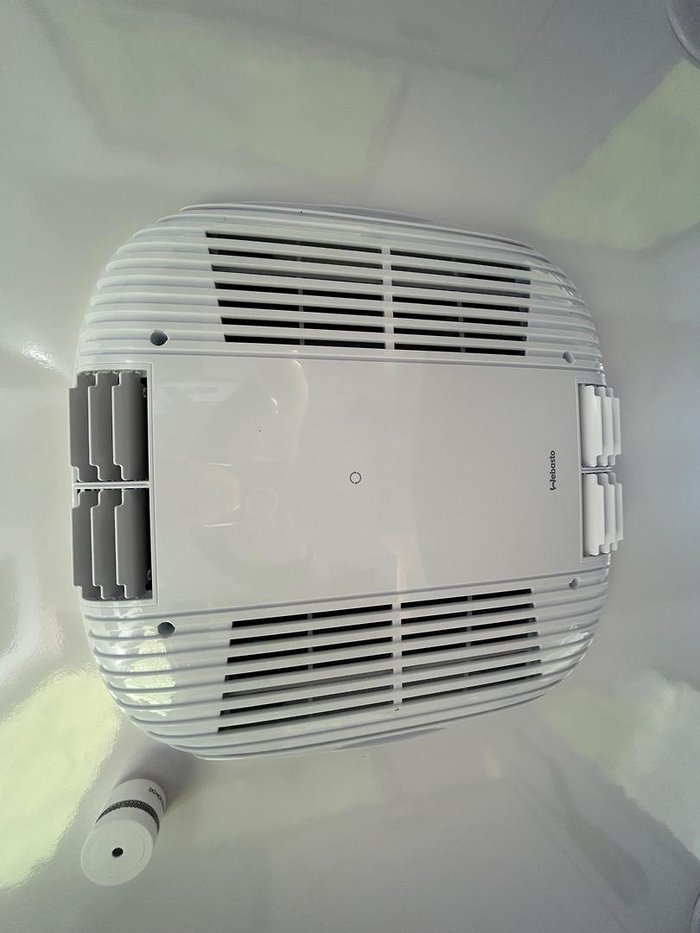

Webasto Cool Top Trail 24 Reverse Cycle Heating & Cooling
Large Underbed Storage Drawers X4
Overhead storage cupboards

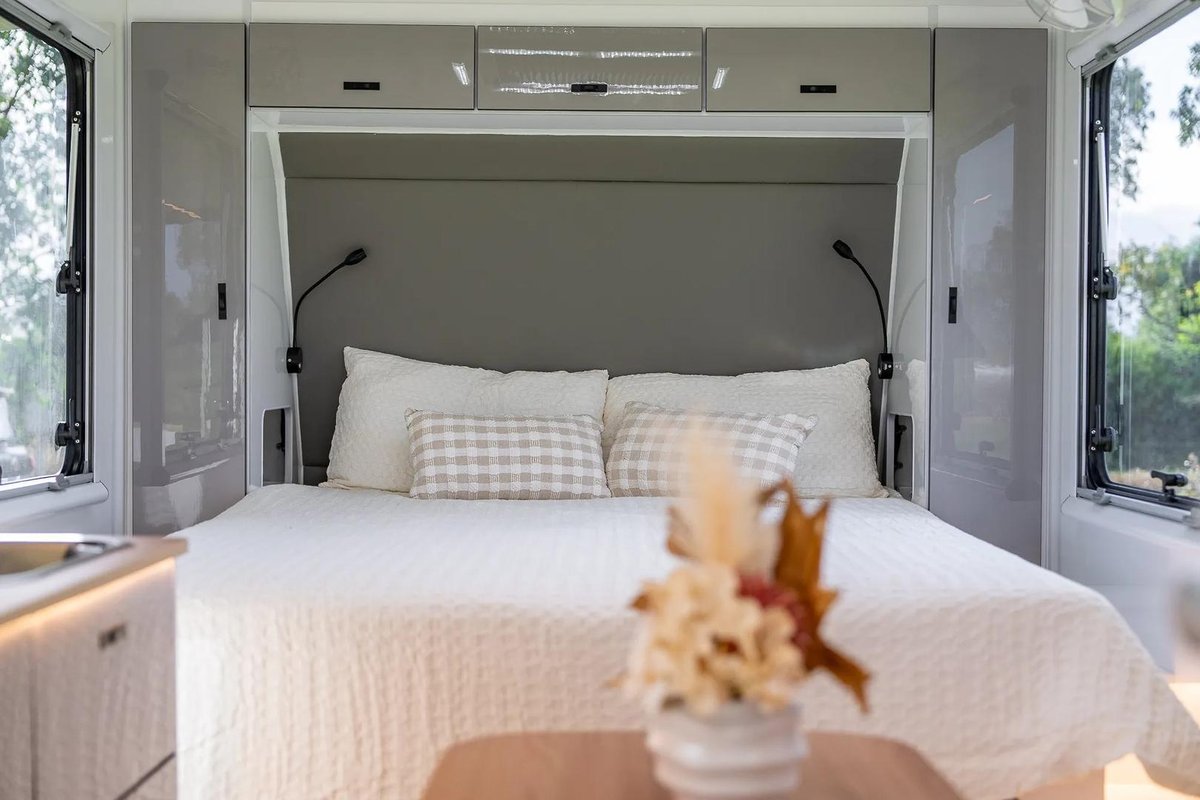

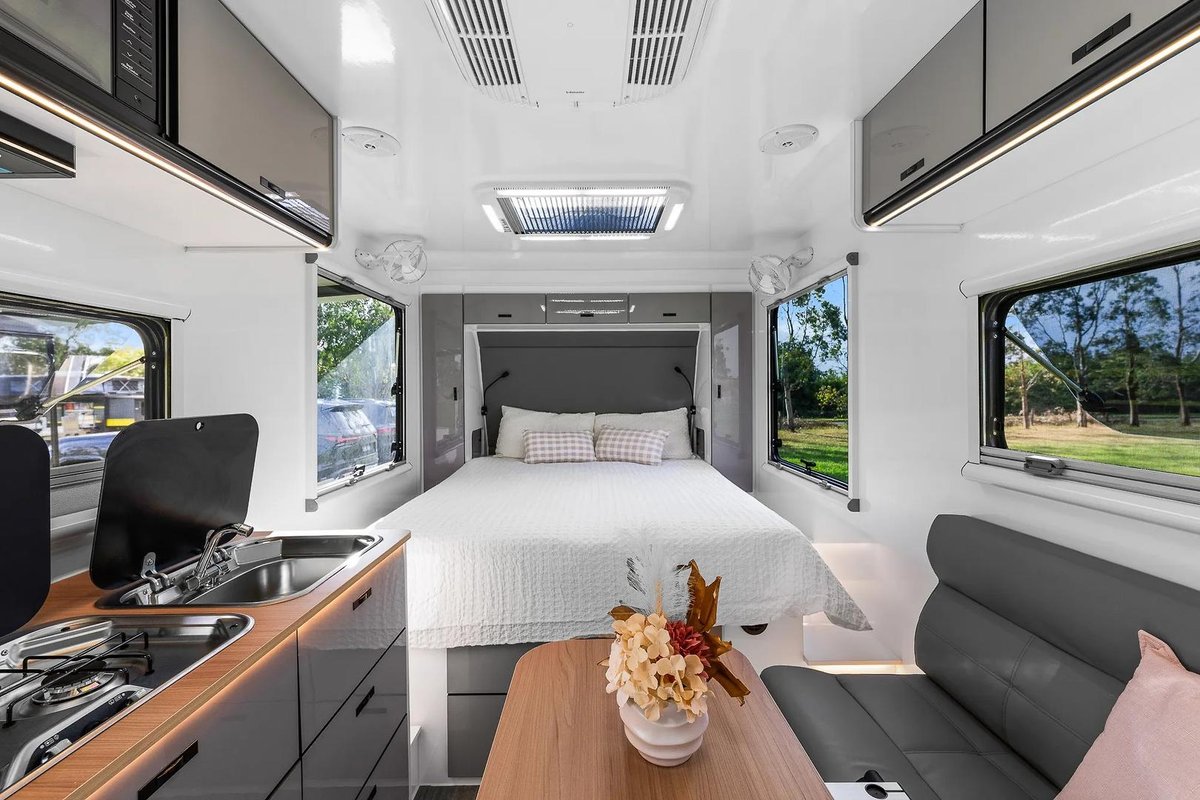

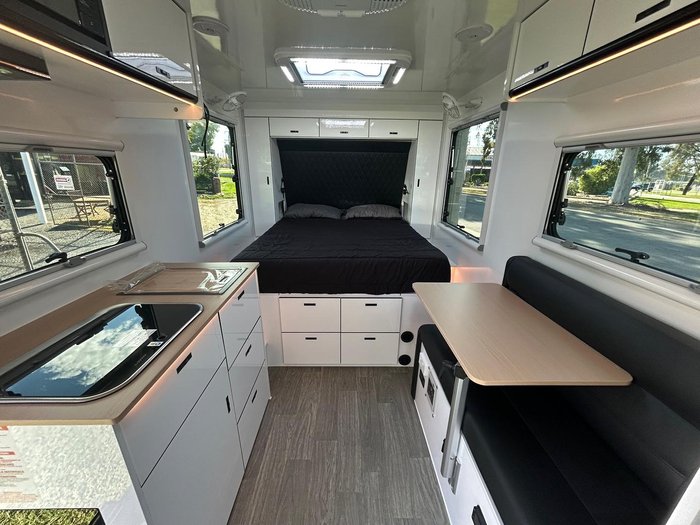

Fixed Queen Bed with Plush Pillow Top Inner Spring Mattress

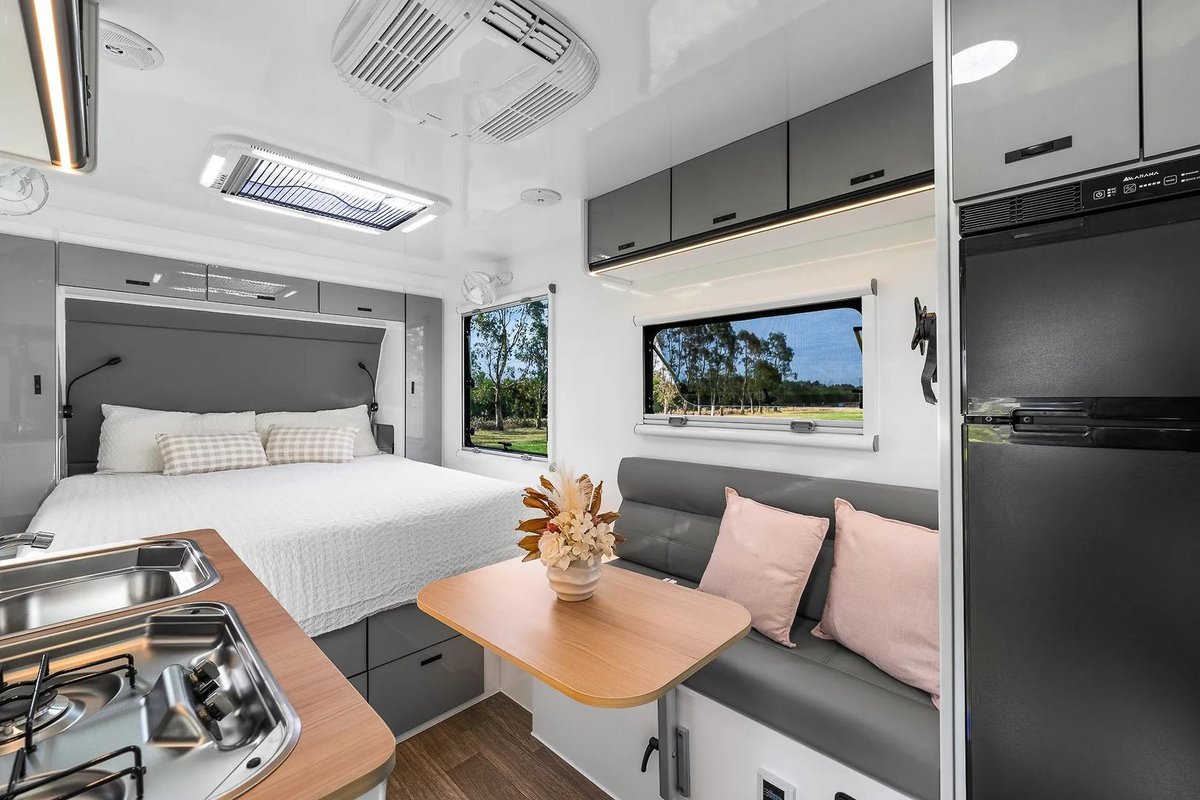

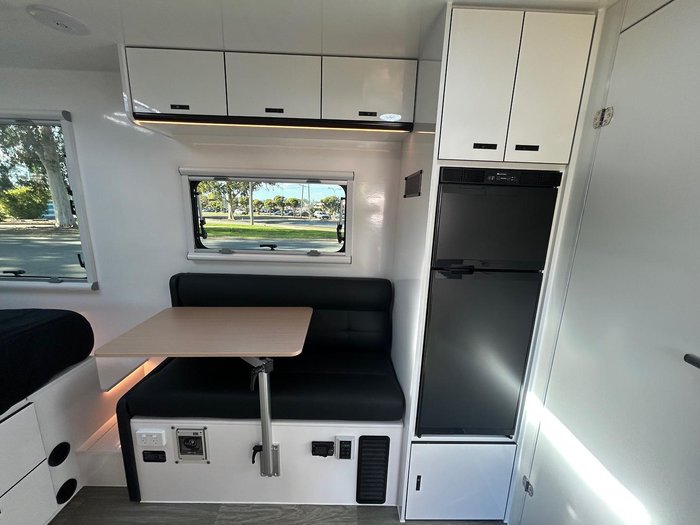

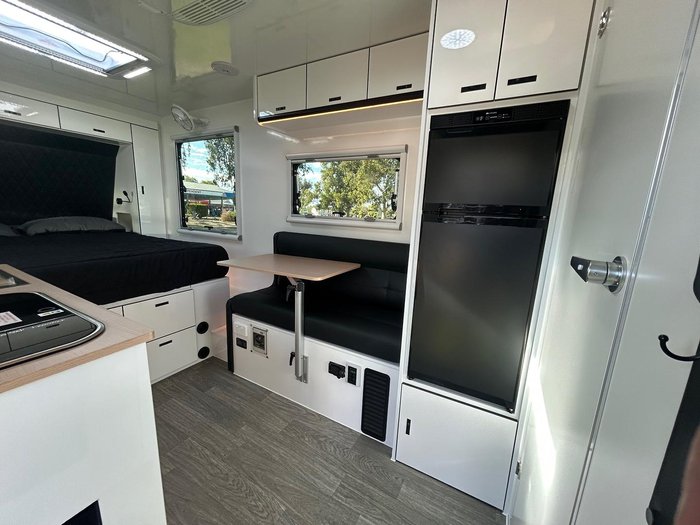

Indoor Lounge Seating Area
Insect Proof Screens on Windows and Lockable Fly-Screen Door

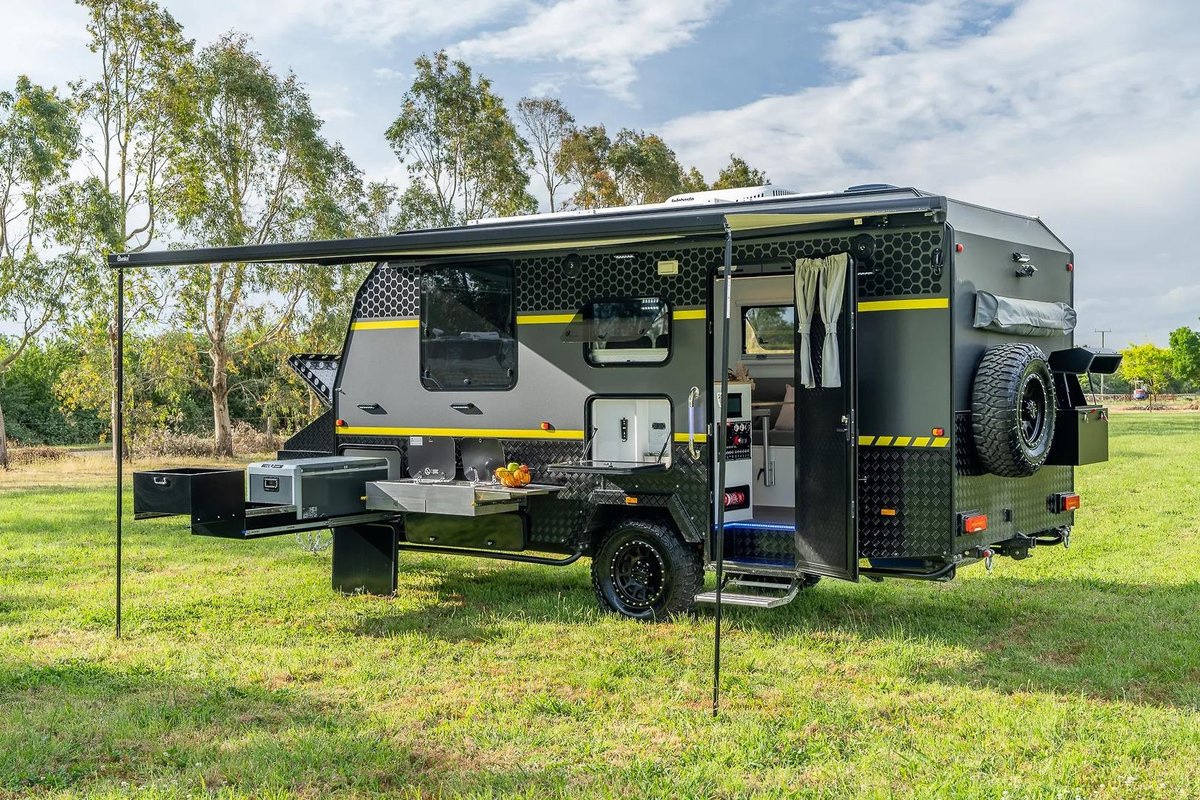

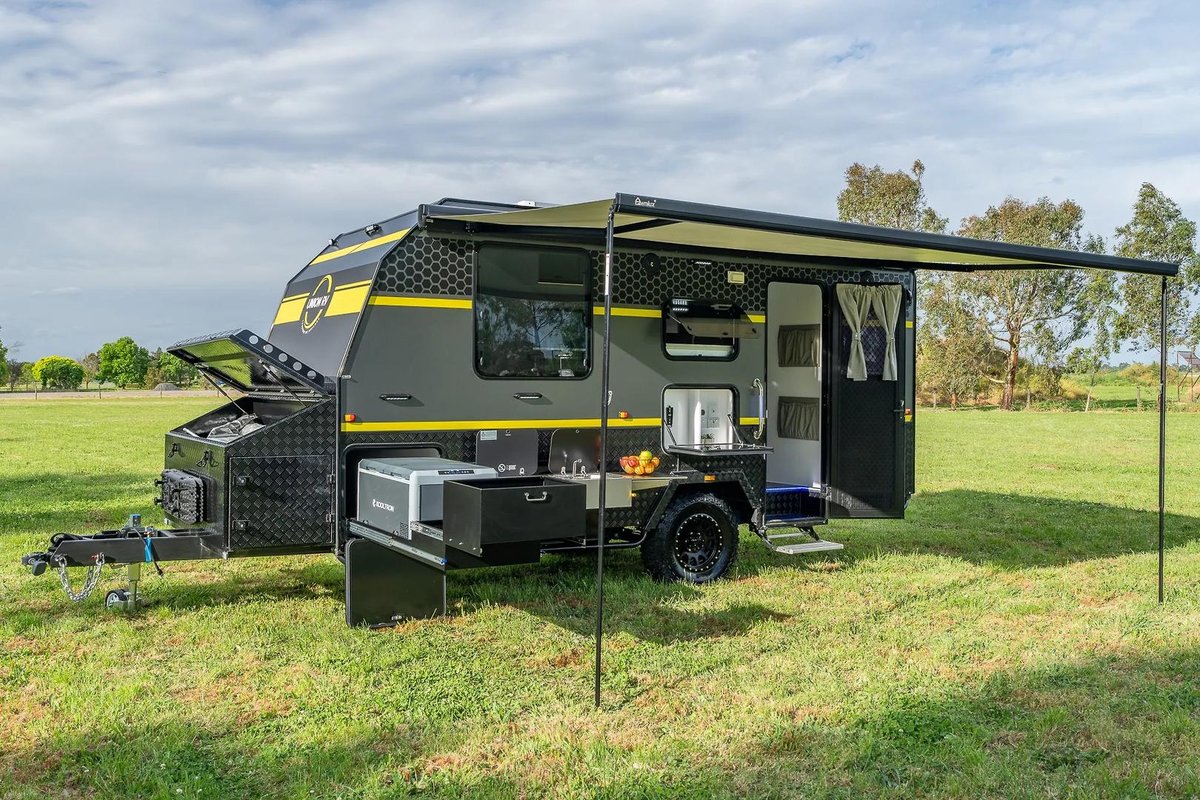

Awnlux Electric Awning
Fully Enclosed Annexe
Arana Constant Gas Hot Water System
External Hot Water Shower + Side Mounted Ensuite Tent
200L Water Capacity with Checker plate Protection Plates
80L Grey water tank
CD, Bluetooth, USB and FM Radio Audio System with Indoor/ Outdoor Speakers
2 X 4.5KG Gas Bottle Holders
2x 20L Jerry Can Holders
Seaflo Mains Water Site Connection
Drawbar Mounted Tap

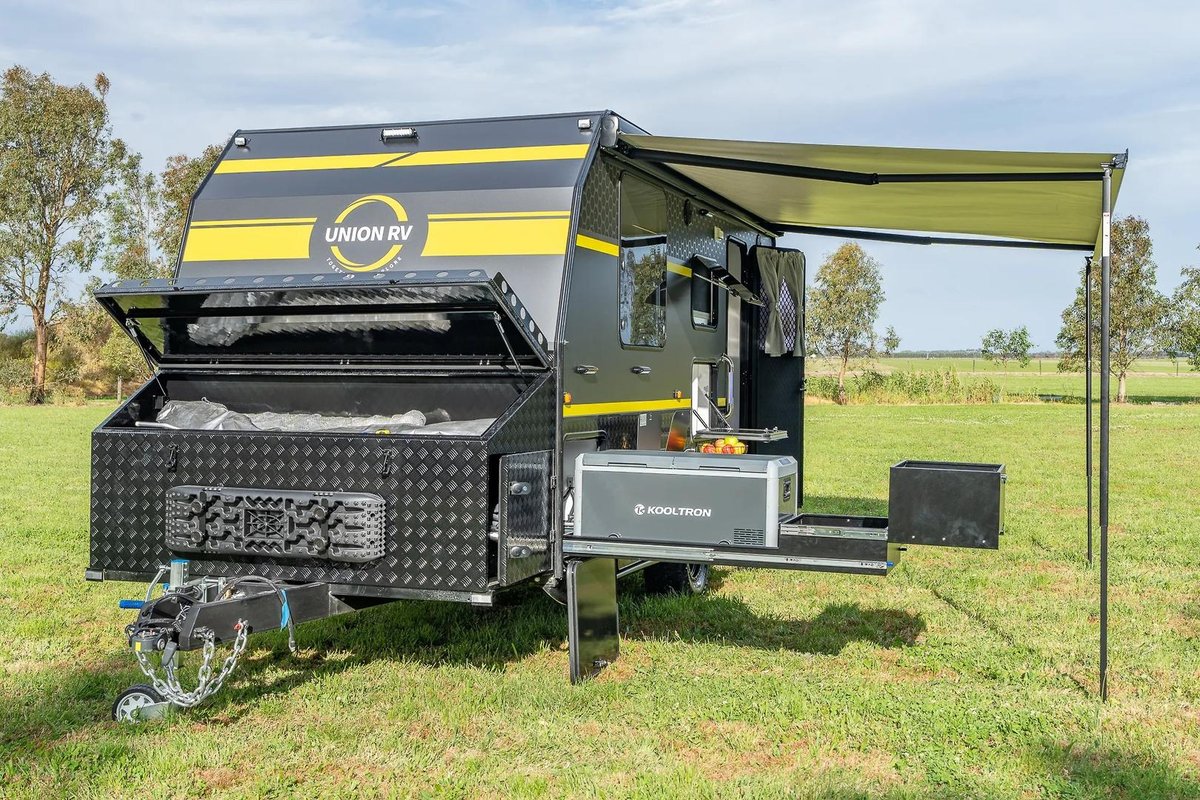

Front Storage Locker with BBQ Slide ( Dimensions: L 800mm X W 480mm X H 480mm)
Fridge Slide with Pantry storage
Fridge slide Dimensions: L 980mm X W 540mm X H 515mm

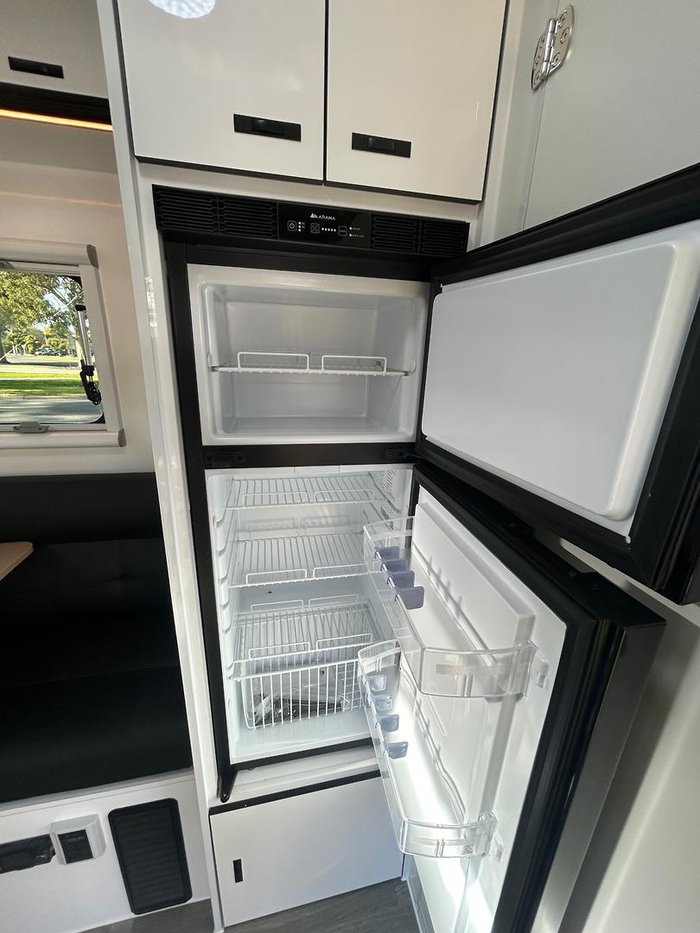

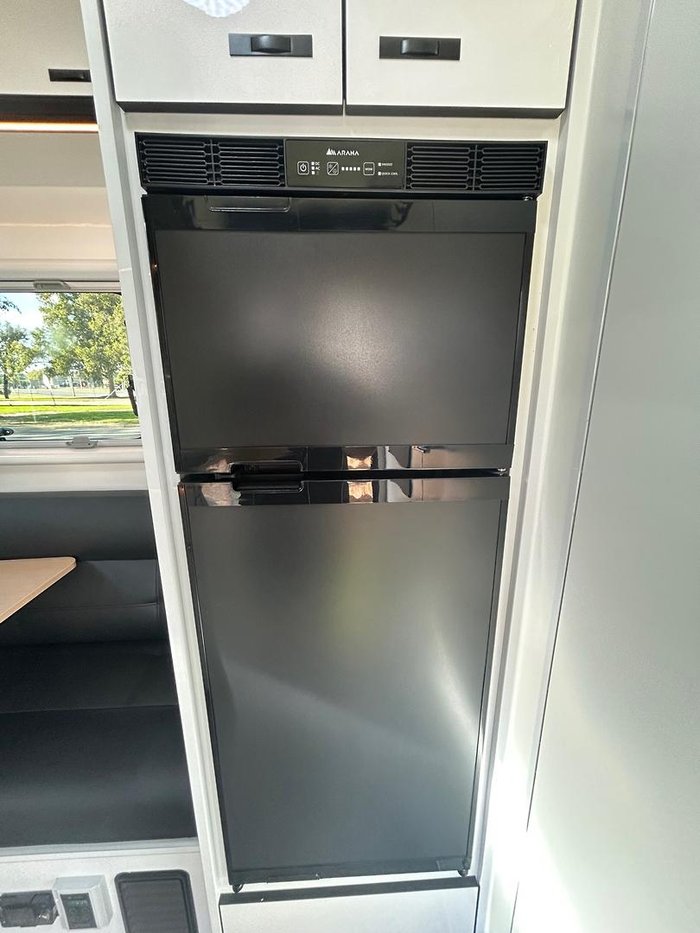

Arana 96L Upright Fridge/Freezer
MORV Microwave
ELECTRICAL
3 x 200w (600W in total) Monocrystalline Solar
2 X 135AH Lithium Battery (Up to 405AH Optional)
Renogy Pure Sine Wave 2000w Inverter

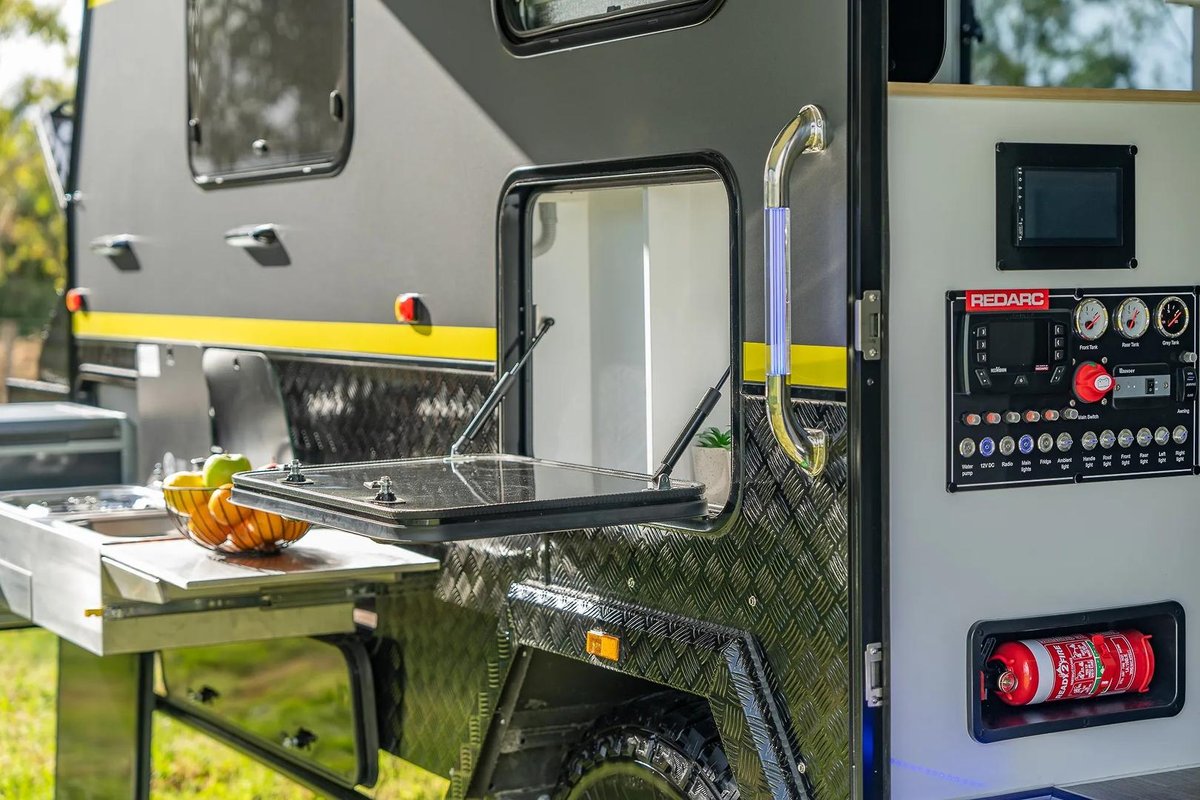

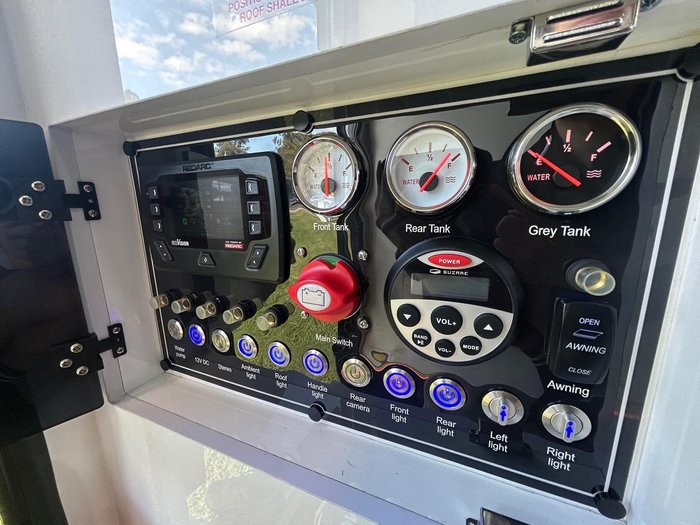

REDARC Manager 30 Battery Management System
Roof mounted Antenna
External Dual Colour LED Lighting
Internal LED lights
LED Bedside Reading Lamps
Multiple 12V and USB-A & USB-C Power Sockets
Multiple 240V Double Power-Points Throughout
12v Fans

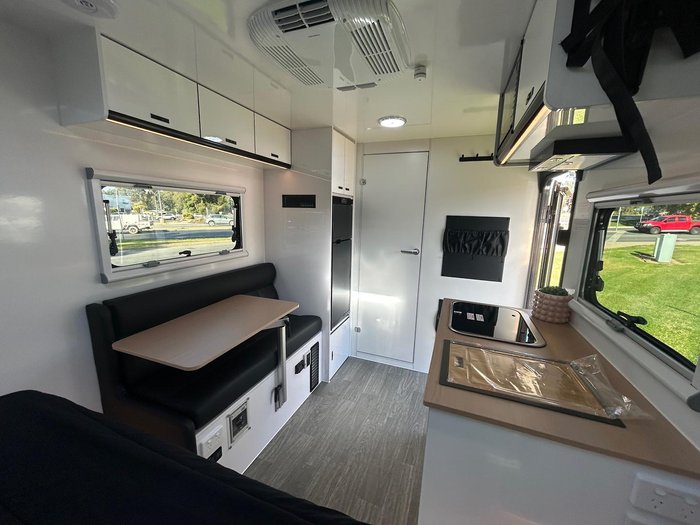

Current internal photos show optional cabinet and upholstry colours, not standard colours
